LDS Aurora Smart System


LDS Aurora AC-KDD-01914-B

Materials/Finish
LDS Aurora AC-KDD-01914-B Single Colour Dimmable – Bluetooth Protocol Fire-Rated LED Downlight with dimension of 88mm(Dia.) x 110mm(H) c/w:-

  • Rated to 30, 60 and 90 minute fire ceiling, as well as acoustic and air leakage tested
  • Convertible driver concept – reduced recess depth to 56mm for shallow ceiling voids
  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each wireless node
  • Over-The-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE APP software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • Aluminium + Pressed Steel + PC body
  • LED type : 3030 SMD LED
  • Beam angle : 40°/ 60° (50% Light Intensity)
  • SDCM : ˂6
  • 1.5kV surge protection
  • Power Factor : ≥0.85
  • Integral LED driver

Lamp use

  • 1 x 7W SMD LED Lamp

Colour (Single Colour)

  • SC

Lumen

  • 2700K = 560lm
  • 3000K = 600lm
  • 4000K = 640lm

Dimming Range

  • 0~100%

Standard

  • IP65

Applications

  • Hospitality – Hotel gust room, Special function room, Entertainment rooms, Cinema
  • Residential – Bedroom, Living room, Kitchen, Den

LDS Aurora AC-KDD-01989-B

Materials/Finish
LDS Aurora AC-KDD-01989-B Single Colour Dimmable – Bluetooth Protocol LED Flood Downlight with dimension of 178mm(Dia.) x 66mm(H) c/w:-

  • Integrated BLE module + driver concept – allows for independent IP addressability
  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each wireless node
  • Over-The-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE APP software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • Pressed aluminium + PC body
  • LED type : 2835 SMD LED
  • Beam angle : Flood
  • SDCM : ˂6
  • 1.5kV surge protection
  • Power Factor : ≥0.85
  • Remote LED driver

Lamp use

  • 18W SMD LED Lamp

Colour (Single Colour)

  • SC

Lumen

  • 2700K = 1450lm
  • 3000K = 1550lm
  • 4000K = 1550lm

Dimming Range

  • 0~100%

Standard

  • IP44

Installation/Mounting

  • Recessed mounting

Applications

  • Commercial – Corridors, Lobbies, Meeting rooms, Executive office, Work spaces







LDS Aurora AC-MD0010

Materials/Finish
LDS Aurora AC-MD0010 Single Colour Dimmable – Bluetooth Protocol LED Module with dimension of 83mm(Dia.) x 95mm(H) (Before Collapsing) c/w:-

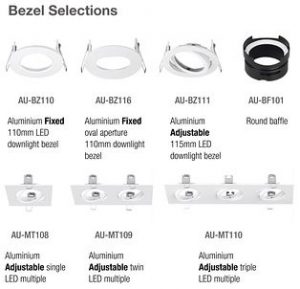

  • Modular design (Interchangeable drivers, optics, and bezels)
  • Single colour control (Dimmable-TRIAC, 0 and 1-10V, Non-Dimmable)
  • Smart-enabled (Compatible with BLE MESH, WIFI and Zigbee protocols when paired with our appropriate AOne control module)
  • Aluminium + PC body
  • Input voltage : 34-38V DC, 700mA
  • SDCM : ˂4

Lamp use

  • 1 x 25W COB LED Lamp

Colour (Single Colour)

  • SC

Lumen @CRI 80

  • 2700K = 2550lm (Reflector) / 2400lm (Multi-lens)
  • 3000K = 2600lm (Reflector) / 2550lm (Multi-lens)
  • 4000K = 2750lm (Reflector) / 2600lm (Multi-lens)

Lumen @CRI 90

  • 2700K = 2200lm (Reflector) / 2100lm (Multi-lens)
  • 3000K = 2300lm (Reflector) / 2200lm (Multi-lens)
  • 4000K = 2370lm (Reflector) / 2250lm (Multi-lens)

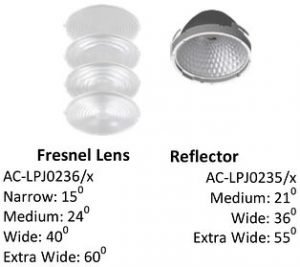

Beam angle @Fresnel Lens

  • 15°/ 24°/ 36°/ 60°

Beam angle @Reflector

  • 21°/ 36°/ 55°

Standard

  • IP20

Applications

  • Retail – High powered shop lighting, Including track applications, Window environments, Promotional areas

LDS Aurora AC-SER-S5-001

Materials/Finish
LDS Aurora AC-SER-S5-001 Bluetooth Protocol PIR Motion Sensor with dimension of 88mm(Dia.) x 46mm(H) c/w:-

  • Wireless BLE dimming control via our user-friendly Radiant BLE APP
  • Connect up to 63x BLE enabled light per sensor
  • 5~8M operation sensing range
  • Maximize your energy savings within a space
  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • 20M operating range between each Bluetooth module
  • PC body
  • Input voltage : 110~240V AC

Standard

  • IP20

Applications

  • Office – Entrances, Lobbies, Cafeterias, Storage areas
  • Industrial Lighting – Corridors, Work floor and work spaces, Sensitive areas, Loading docks and bays




LDS Aurora AC-ST224CX

Materials/Finish
LDS Aurora AC-ST224CX CCT Tunable + Dimmable LED strip light c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each wireless node
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • LED type : 5050 SMD LED
  • Input voltage : 24V DC

Lamp use

  • 24V 9.6W/Meter

Colour (CCT Tunable)

  • CX (2700K~6500K)

Lumen

  • 2700K = 340lm
  • 6500K = 380lm

Beam angle

  • 120°

Standard

  • IP20

Installation/Mounting

  • Surface mounting

Applications

  • Commercial - Corridors, Lobbies, Meeting rooms, Executive office, Work spaces (To Apply Productivity Scene Settings)
  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den
  • Retail - Promotional areas where indirect lighting can be applied

LDS Aurora AC-ST224RGBCX

Materials/Finish
LDS Aurora AC-ST224RGBCX RGB & CCT Tunable + Dimmable LED strip light c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each wireless node
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • LED type : 5060 SMD LED
  • Input voltage : 24V DC

Lamp use

  • 24V 19.2W/Meter

Colour (RGB & CCT Tunable)

  • RGBCX (RGB & 2700K~6500K)

Lumen

  • 2700K = 340lm
  • 6500K = 380lm

Beam angle

  • 120°

Standard

  • IP20

Installation/Mounting

  • Surface mounting

Applications

  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema (Anywhere RGB Functionality Is Desired)
  • Residential - Bedroom, Living room, Kitchen, Den, Karaoke room (Anywhere RGB Functionality Is Desired)
  • Retail – Promotional and branding areas where indirect RGB lighting can be applied




LDS Aurora AC-ST224XX

Materials/Finish
LDS Aurora AC-ST224XX Single Colour Dimmable LED strip light c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each wireless node
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • LED type : 3528 SMD LED
  • Input voltage : 24V DC

Lamp use

  • 24V 9.6W/Meter

Colour (Single Colour)

  • SC (2700K / 3200K / 6200K)

Lumen

  • 2700K = 400lm
  • 3000K = 420lm
  • 6200K = 450lm

Beam angle

  • 120°

Standard

  • IP20

Installation/Mounting

  • Surface mounting

Applications

  • Commercial - Corridors, Lobbies, Meeting rooms, Executive office, Work spaces
  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den
  • Retail - Promotional areas where indirect lighting can be applied

LDS Aurora AC-SWT-B1-001

Materials/Finish
LDS Aurora AC-SWT-B1-001 2-in-1 Dimming + CCT Tuning Battery-free BLE Portable Control with dimension of Wireless Switch 86.8mm(L) x 86.8mm(W) x 13.8mm(H) & Dimmable Module 117.5mm(L) x 49mm(W) x 29mm(H) c/w:-

  • CX capable – CCT tuning and dimming possible
  • Battery free – Mechanical energy from the tap of your fingers creates a RF signal to trigger luminaire tuning
  • Portable – Take it around the room with you
  • Act as a backup control to your wirelessly connected CX luminaires
  • Select which luminaires will be controlled by the switch inside the Radiant BLE APP
  • Easy adjustment – Up and down tuning for dimming and CCT, plus ON/OFF feature
  • PC body
  • Input voltage : 220~240V AC

Colour (CCT Tunable)

  • CX

Dimming Range

  • 0~100%

Standard

  • IP20

Applications

  • Commercial - Corridors, Lobbies, Meeting rooms, Executive office, Work spaces (Wherever CCT Tuning Is Desired)
  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den, Karaoka room
  • Retail – Any application where CCT tuning is desired




LDS Aurora AU-A1BL0-10V

Materials/Finish
LDS Aurora AU-A1BL0-10V Bluetooth Protocol 0-10V Dimmable DC Converter with dimension of 117.5mm(L) x 49mm(W) x 29mm(H) c/w:-

  • Capacity to connect to 20x 0-10V controllers
  • Supports a variety of 0-10V controllers and luminaires
  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each AOne module
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • PC body
  • Input voltage : 100~240V AC

Colour (Single Colour)

  • SC

Dimming Range

  • 0-10V (i.e., 20x 0-10V controllers can be groped to 1x AOne module)

Standard

  • IP20

Applications

  • Retrofit – Utilize with existing installed 0-10V luminaires
  • Commercial – Corridors, Lobbies, Meeting rooms, Executive office, Work spaces
  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den
  • Retail - 0-10V track lighting, Shop floor downlighting

LDS Aurora AU-A1BL320

Materials/Finish
LDS Aurora AU-A1BL320 Bluetooth Protocol Wireless Dimmable Controller with dimension of 117.5mm(L) x 49mm(W) x 29mm(H) c/w:-

  • Supports a variety of TRIAC dimmable lamps, bulbs, downlights, and track lighting
  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each AOne module
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • PC body
  • Input voltage : 100~240V AC
  • 1.5kV surge protection

Max. Load

  • 320Watt

Colour (Single Colour)

  • SC

Power factor

  • 0.9

Dimming Range

  • 0~100%

Standard

  • IP20

Applications

  • Retrofit - Utilize with existing installed Mains Voltage luminaires
  • Commercial – Corridors, Lobbies, Meeting rooms, Executive office, Work spaces
  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den
  • Retail – Mains Voltage track lighting, Shop floor downlighting




LDS Aurora AU-A1BLCX-CV

Materials/Finish
LDS Aurora AU-A1BLCX-CV CCT Tunable + Dimmable – Bluetooth Protocol Wireless Constant Voltage Controller with dimension of 185mm(L) x 40mm(W) x 31mm(H) c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each AOne module
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • PC body
  • Input voltage : 12~24V DC

Max. Load

  • 96Watt per channel

Max. Output Current

  • 4A per channel

Colour (CCT Tunable)

  • CX (2700K~6500K)

Dimming Range

  • 0~100%

Standard

  • IP20

Applications

  • Commercial – Corridors, Lobbies, Meeting rooms, Executive office, Work spaces (To Apply Productivity Scene Settings)
  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den
  • Retail – Promotional areas where indirect lighting can be applied

LDS Aurora AU-A1BLRGBCX-CV

Materials/Finish
LDS Aurora AU-A1BLRGBCX-CV RGB & CCT Tunable + Dimmable – Bluetooth Protocol Wireless Constant Voltage Controller with dimension of 185mm(L) x 40mm(W) x 31mm(H) c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each AOne module
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • PC body
  • Input voltage : 12~24V DC

Max. Load

  • 96Watt per channel

Max. Output Current

  • 4A per channel

Colour (RGB & CCT Tunable)

  • RGBCX (RGB & 2700K~6500K)

Dimming Range

  • 0~100%

Standard

  • IP20

Applications

  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema (Anywhere RGB Functionality Is Desired)
  • Residential - Bedroom, Living room, Kitchen, Den, Karaoke room (Anywhere RGB Functionality Is Desired)
  • Retail - Promotional and branding areas where indirect RGB lighting can be applied




LDS Aurora AU-A1BLSC-CV

Materials/Finish
LDS Aurora AU-A1BLSC-CV Single Colour Dimmable – Bluetooth Protocol Wireless Constant Voltage Controller with dimension of 185mm(L) x 40mm(W) x 31mm(H) c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each AOne module
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • PC body
  • Input voltage : 12~24V DC

Max. Load

  • 96Watt per channel

Max. Output Current

  • 4A per channel

Colour (Single Colour)

  • SC

Dimming Range

  • 0~100%

Standard

  • IP20

Applications

  • Commercial – Corridors, Lobbies, Meeting rooms, Executive office
  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den
  • Retail – Promotional areas where indirect lighting can be applied

LDS Aurora AU-BUB-B1-002

Materials/Finish
LDS Aurora AU-BUB-B1-002 CCT Tunable + Dimmable – Bluetooth Protocol E27 LED bulb with dimension of 60mm(Dia.) x 117mm(H) c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each wireless node
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • Aluminium + PC body
  • E27 lamp base
  • Input voltage : 220-240V AC, 50Hz
  • Power factor : ≥0.5
  • SDCM : ˂6

Lamp use

  • 1 x 9W LED Lamp

Colour (CCT Tunable)

  • CX (2700K~6500K)

Lumen

  • 2700K = 810lm
  • 6500K = 850lm

Beam angle

  • 200°

Dimming Range

  • 5~100%

Applications

  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den (Anywhere CCT tunable functionality is desired)




LDS Aurora AU-BUB-B1-004

Materials/Finish
LDS Aurora AU-BUB-B1-004 RGB & CCT Tunable + Dimmable – Bluetooth Protocol E27 LED bulb with dimension of 60mm(Dia.) x 117mm(H) c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each wireless node
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • Aluminium + PC body
  • E27 lamp base
  • Input voltage : 220-240V AC, 50Hz
  • Power factor : ≥0.5
  • SDCM : ˂6

Lamp use

  • 1 x 9W LED Lamp

Colour (RGB & CCT Tunable)

  • RGBCX (RGB & 2700K~6500K)

Lumen

  • 2700K = 810lm
  • 6500K = 850lm

Beam angle

  • 200°

Dimming Range

  • 5~100%

Applications

  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema (Anywhere RGBCX tuning is desired)
  • Residential - Bedroom, Living room, Kitchen, Den, Karaoke rooms (Anywhere RGBCX tuning is desired)

LDS Aurora AU-BUB-B1-007

Materials/Finish
LDS Aurora AU-BUB-B1-007 Single Colour Dimmable – Bluetooth Protocol E27 LED bulb with dimension of 60mm(Dia.) x 117mm(H) c/w:-

  • BLE 4.0 MESH protocol means no gateway or router is necessary
  • Can be meshed/connected with a group of AOne modules or other wireless capable luminaires up to 64x wireless nodes when being controlled with our Radiant BLE APP
  • 20M operating range between each wireless node
  • Over-the-Air (OTA) BLE 4.0 capability – firmware is automatically updated OTA once the Radiant BLE App software is updated via the Apple APP store or Google Play store
  • Built-in flash memory for automated light scheduling
  • Aluminium + PC body
  • E27 lamp base
  • Input voltage : 220-240V AC, 50Hz
  • Power factor : ≥0.5
  • SDCM : ˂6

Lamp use

  • 1 x 9W LED Lamp

Colour (Single Colour)

  • SC (2700K / 6500K)

Lumen

  • 2700K = 810lm
  • 6500K = 850lm

Beam angle

  • 200°

Dimming Range

  • 5~100%

Applications

  • Hospitality - Hotel guest room, Special function room, Entertainment rooms, Cinema
  • Residential - Bedroom, Living room, Kitchen, Den
