LUTRON Energi Savr Node

Energi Savr Node

Energi Savr Node is a simple, programmable solution for controlling light and saving energy in any commercial space. Use Energi Savr Node to connect phase adaptive, 0-10V, EcoSystem, DALI or switching ballasts to wired or wireless occupancy sensors, daylight sensors, and controls for total light control.

Easy To Install and Maintain

  • Easy and intuitive system programming application designed for the Apple iPhone or iPod touch mobile digital devices
  • For simple applications, preconfigured modes reduce installation time and eliminate system programming
  • Automatic ballast replacement eliminates the need for system reprogramming when replacing ballasts (feature available only on EcoSystem version)
  • Wireless sensors and controls can be easily retrofit with no need for rewiring

Expandable

  • Control a single space, up to an entire floor with one module and add additional Energi Savr Node modules to control multiple floors
  • Modules can link with Quantum® for total light management throughout an entire building

Versatile

  • EcoSystem ballast control offers flexibility for reconfiguring frequently changing spaces (feature available only on EcoSystem version)
  • Great for retrofit solutions or new construction - install each module locally - no need to connect to a central panel

Energy-Saving and Environmentally Friendly

  • Reduce lighting energy use with dimming, occupancy sensing, and daylight harvesting

LUTRON’S New Modular Approach To Lighting Control Systems

LUTRON’S New Modular Approach To Lighting Control Systems

Typical Application: Office Floor

Typical Application: Office Floor

System Programming

The Energi Savr Node programming application for Apple iPhone or iPod touch mobile digital devices is the key to an intelligent light and blinds control system.

  • A djust ballasts to the needs of any space
  • Define light level
  • Adjust sensor and control preferences
  • Create groups
  • Adjust multiple settings on every ballast

Use the Energi Savr Node programming application to setup, fine-tune, and maintain Energi Savr Node. The iPod application can be used to save all configuration settings in the system. In the event that a Energi Savr Node module is replaced, all system settings and configuration can be automatically restored.

Preconfigured Modes For Easy Installation (no commissioning required)

Daylight Sensing


* example only - system calculates light level percentages for each fixture based on the amount of sunlight available
** Energi Savr Node can support up to 4 daylight rows.

Pre-configured mode 1

Pre-configured mode 1 implements a typical daylighting scenario. Fixtures automatically adjust their light level based on the amount of available daylight. To maintain a consistent light level, fixtures closest to the windows dim more than interior fixtures located further from the windows.

Zone Occupancy Sensing

Pre-configured mode 2

Pre-configured mode 2 shows two independently controlled areas. Each room is controlled by an occupancy sensor, turning lights on and off based on room occupancy. Simply connect sensors, wallstations, and fixtures to Energi Savr Node so space functions as shown without commissioning.

Energi Savr Node Is Completely Expandable

System Diagram

Energi Savr Node QS Switching/0-10 V Fixture Controller

Features

  • Two occupancy sensor inputs for automated control of lights in areas
  • Two daylight sensor inputs automatically adjust light levels based on the amount of natural light entering through the windows
  • I ncludes QS control link for seamless integration of lights, motorized window treatments, and control stations
  • Energi Savr Node QS units can be used in a Quantum® system to control and manage light in an entire building

Specifications

  • 220-240 V~ 50/60 Hz
  • Lightning strike protection meets ANSI/IEEE standard 62.31-1980. Can withstand voltage surges of up to 6000 V~ and current surges
    of up to 3000 A
  • Current draw: 200 mA max

Output Zone Ratings

  • Each zone is rated at 10 AX for switching. Rated for resistive, inductive, or capacitive loads as defined by IEC/EN 60669-2-1
  • 0-10 V rated for 50 mA source or sink current per zone

Energi Savr Node QS Switching/0-10 V Fixture Controller
Energi Savr Node QS Switching/0-10 V Fixture Controller

Energi Savr Node QS Phase Adaptive Fixture Controller

Energi Savr Node QS Phase Adaptive Fixture Controller

Features

  • A utomatically selects leading-edge or trailing-edge dimming for incandescent/halogen, electronic/magnetic low-voltage and neon/cold cathode light sources
  • Controls dimmable CFL/LED loads. Refer to Lutron® P/N 048478 on www.lutron.com for compatibility with dimmable CFL/LED light sources
  • RTISSTM equipped technology compensates for incoming line-voltage variations (up to ± 2% change in frequency/second) such as changes in Root Mean Square (RMS) voltage, frequency shifts, harmonics and line noise
  • RTISS-TETM operates on the trailing edge of the A/C sine wave. This allows for true instantaneous voltage compensation
  • Provides air gap off (when all zones are off).

Specifications

  • 220-240 V~ 50/60 Hz
  • Lightning strike protection meets ANSI/IEEE standard 62.31-1980. Can withstand voltage surges of up to 6000 V~ and current surges of up to 3000 A
  • 24 V - 132 mA, 4 PDUs supplied

Output Zone Ratings

  • No Derating is required if:
    - Calibration point maximum is 70 ºC
    - R oom ambient temperature is between 0 ºC to 30 ºC
    - Panel ambient temperature is between 0 ºC to 50 ºC
  • 100 W Derating is required on all zones for a single module in a single non-ventilated DIN enclosure if:
    - The room ambient temperature is between 30 ºC and 40 ºC
  • 200 W Derating is required on all zones for multiple row non-ventilated DIN enclosure if:
    - The room ambient temperature is between 30 ºC and 40 ºC
  • Each zone has no minimum load requirement
  • Automatically selects leading-edge or trailing-edge dimming or can also be manually configured for a specific load type
  • Internal relay provides an air gap off when all zones are off

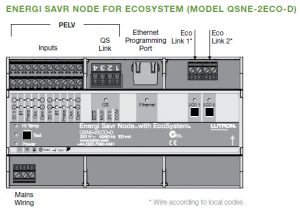

Energi Savr Node for EcoSystem

This Energi Savr Node unit is a DIN-rail mounted Eco Link controller for EcoSystem ballasts, drivers and devices. It provides Eco Link power and control for two independent Eco Links with up to 64 ballasts each. The Energi Savr Node unit also provides direct connections and power for the following Lutron® devices:

Occupancy sensors      Daylight sensors      IR receivers      QS devices

Features

  • Provides EcoSystem Link power for either one or two links of EcoSystem ballasts or drivers (up to 250 mA per link)
  • Power failure memory retains control unit programming in the event of a power loss
  • I ncludes QS link for seamless integration of lights, motorized window treatments, control stations, and QS Sensor Modules
  • Energi Savr Node units and QS Sensor Modules can be used in a Quantum® system to control and manage light in an entire building.

Specifications

  • 230 V~ 50/60 Hz
  • Current draw: 100mA max
  • Lightning strike protection meets ANSI/IEEE standard 62.31-1980. Can withstand voltage surges of up to 6000 V~ and current surges of up to 3000 A
  • Eco Link Output: 18 V - 250 mA maximum per Link
  • Control up to 64 EcoSystem-compatible devices (ballast, modules, or LED drivers) per EcoSystem Digital Link (up to 128 devices per Energi Savr Node with EcoSystem unit which can be grouped into maximum 100 zones):
    - EcoSystem H-Series ballasts
    - Hi-lume® A-Series LED drivers
    - 5-Series LED drivers
  • D igitally define areas and zones
  • Configure wired or wireless sensors and controls to control devices on multiple EcoSystem Digital Links and/or multiple Energi Savr Node units
  • A utomatic replacement of a single failed ballast, module, or driver
  • Simple method of replacing multiple failed ballasts, modules, or drivers

Energi Savr Node for EcoSystem

Energi Savr Node for DALI

This Energi Savr Node unit is a DIN-rail mounted controller for DALI-compliant Digital Addressable loads. It provides DALI bus power and control for two independent DALI Buses with up to 64 ballasts each. The Energi Savr Node unit also provides direct connections and power for the following Lutron devices:

Occupancy sensors     Daylight sensors     IR receivers     QS devices

Energi Savr Node for DALI

Features

  • Provides power for two buses of DALI compliant digital addressable loads (up to 250 mA per bus).
  • Each DALI Bus can control a maximum of 16 zones
  • Power failure memory retains control unit programming in the event of a power loss
  • I ncludes QS link for seamless integration of lights, motorized window treatments, control stations, and QS Sensor Modules
  • Energi Savr Node units and QS Sensor Modules can be used in a Quantum system to control and manage light in an entire building.

Specifications

  • 220-240 V~ 50/60 Hz
  • Current draw: 100mA max
  • Lightning strike protection meets ANSI/IEEE standard 62.31-1980. Can withstand voltage surges of up to 6000 V~ and current surges of up to 3000 A
  • DALI Bus Output: 18 V - 250 mA maximum per bus.
  • Up to 64 DALI compliant loads on each bus can be addressed and grouped into 16 zones.
  • Digitally define areas and zones.
  • DALI Bus wires are polarity insensitive and topology-free.
